BÅT

Azimut Yachts

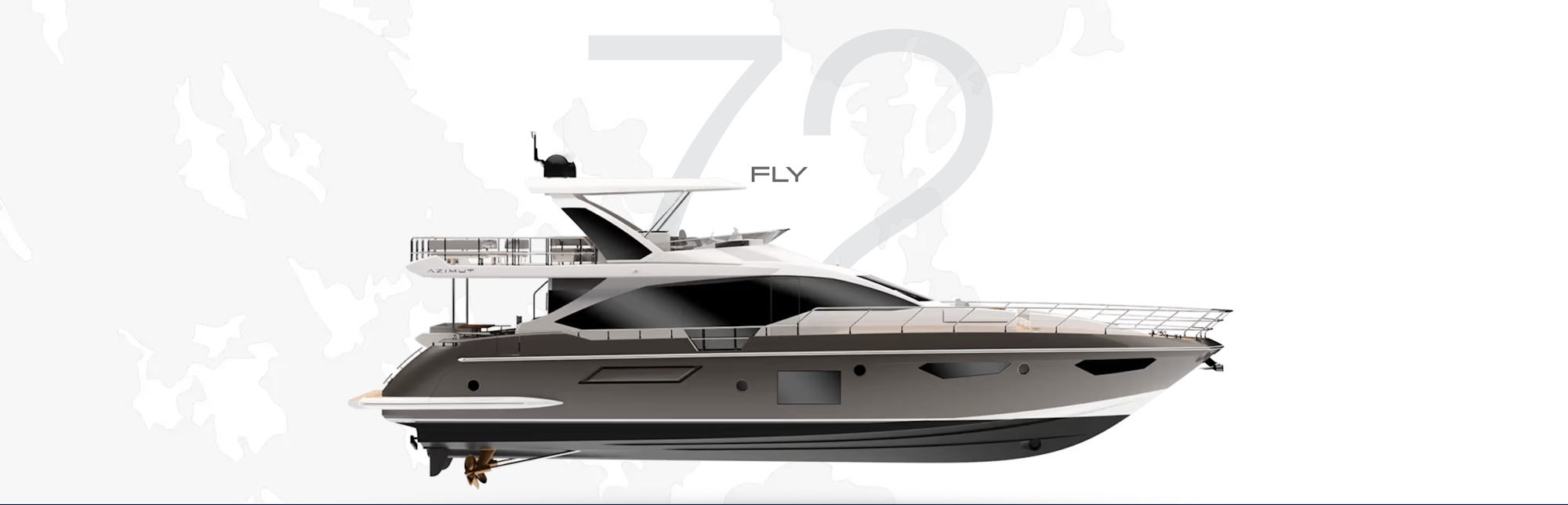

AZIMUT 72 FLYBRIDGE

 INFO

  • VERFT: Azimut Yachts
  • PRIS STARTER PÅ: RING
  • DIM: loa 22,60 x b5,60
  • SENGER:  8 +2 crew
  • NESTE LEDIG : UTSOLGT – RING

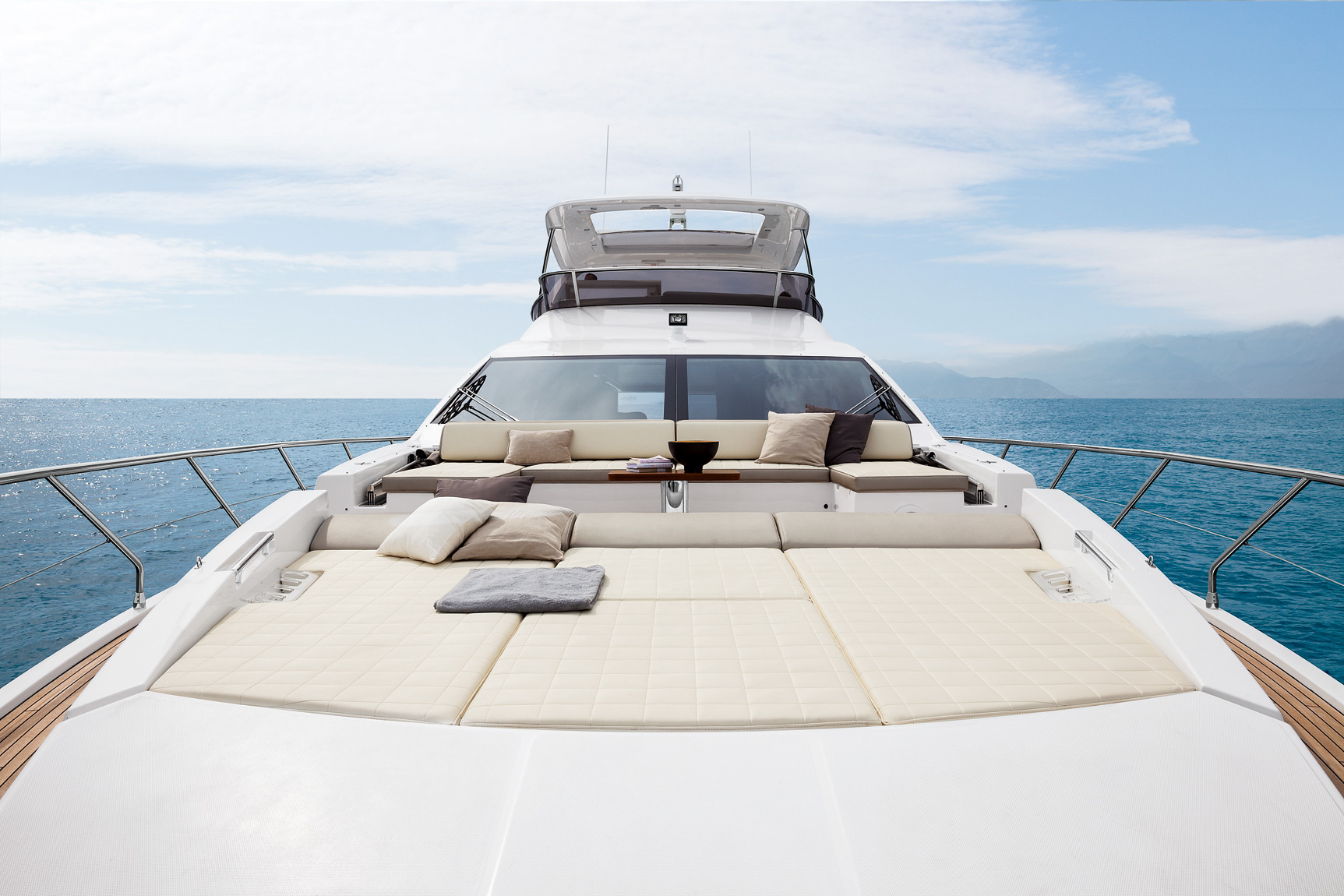

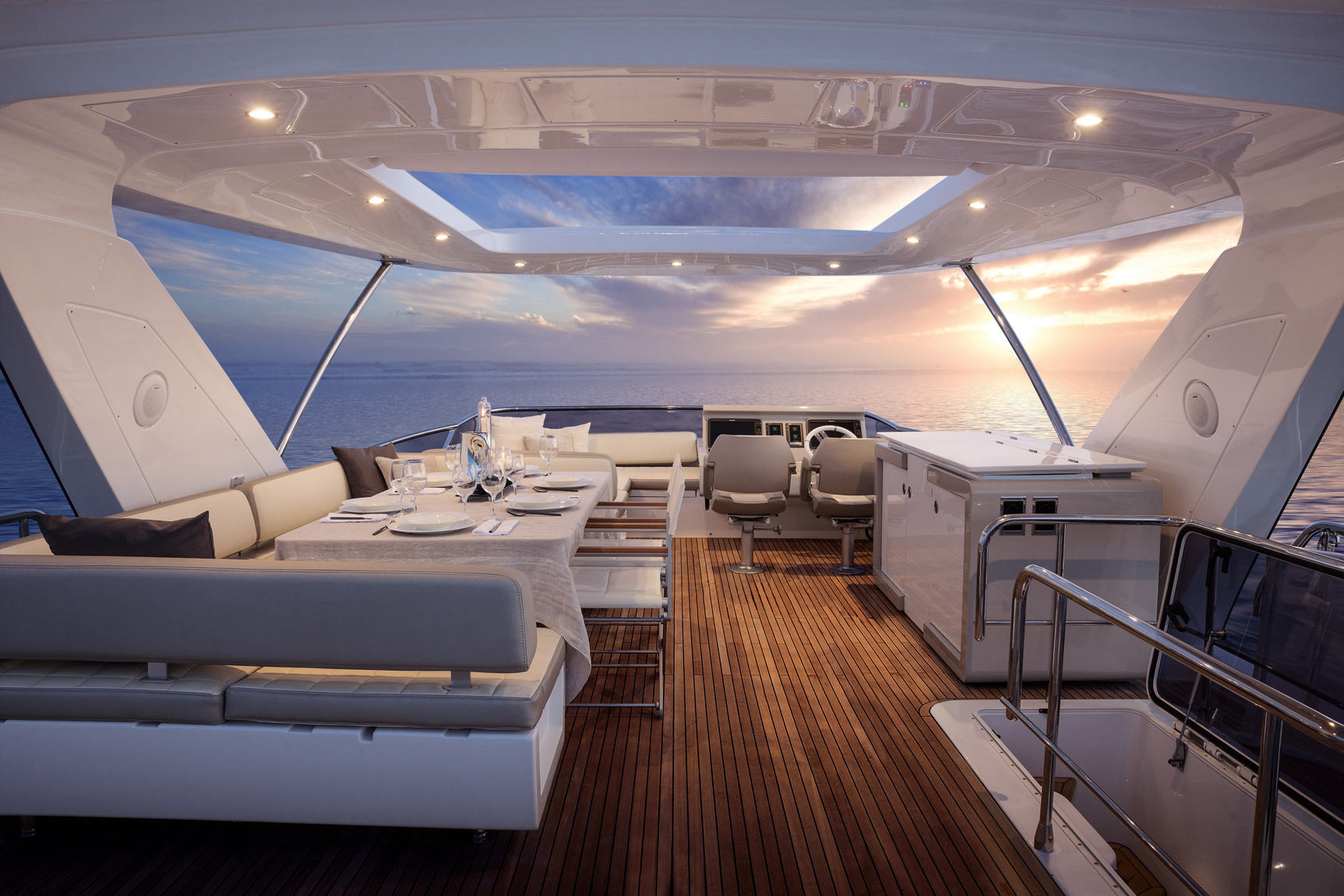

EKSTERIØR BILDER

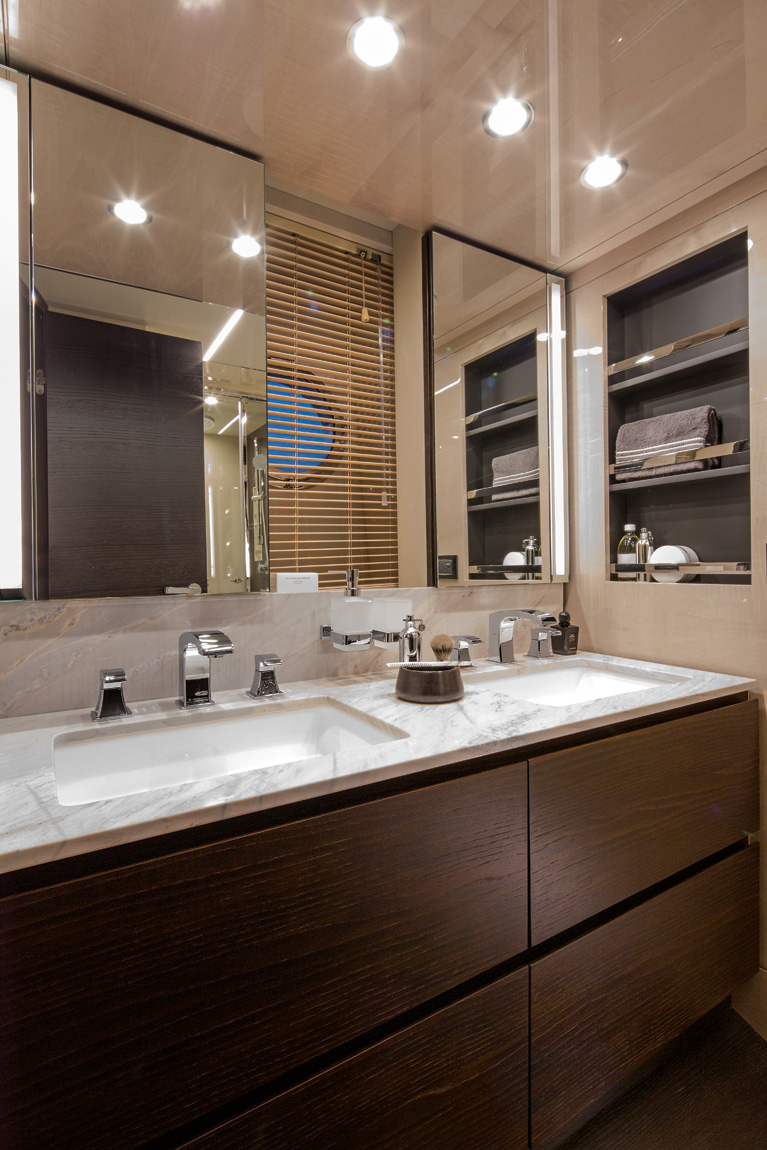

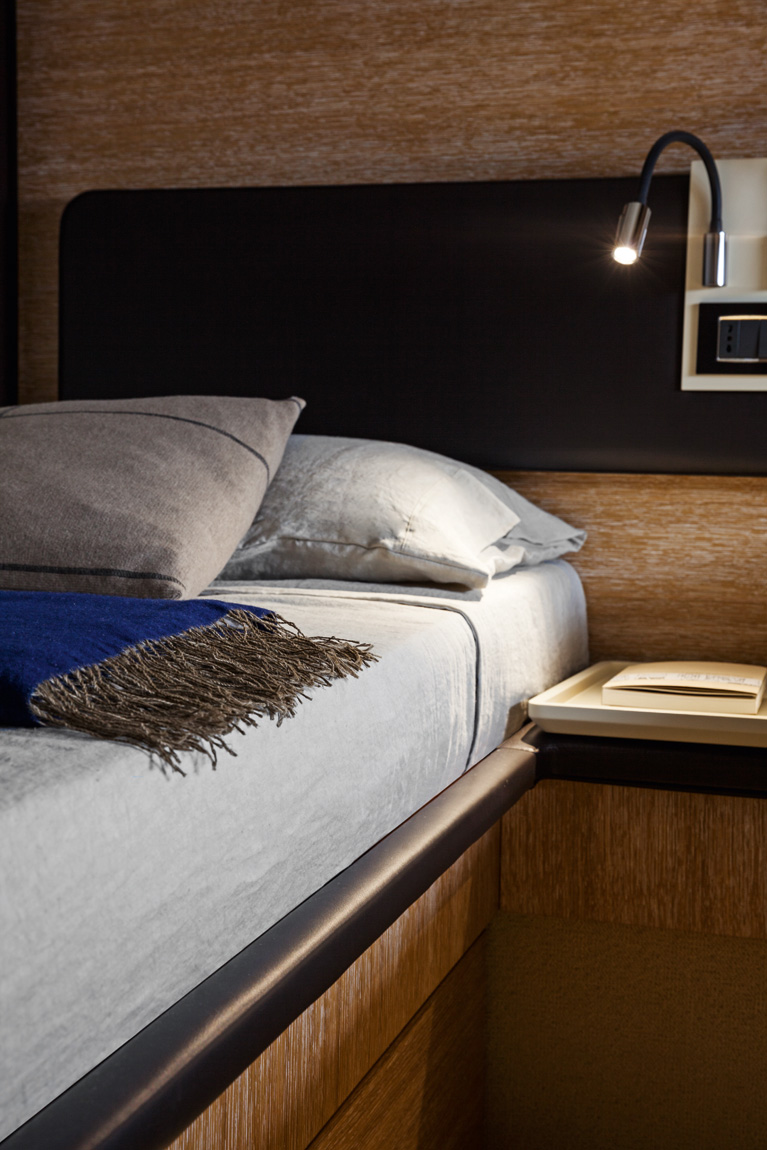

INTERIØR BILDER

LAYOUTS

Official Video AZIMUT 72 FLYBRIDGE



Play Video
Play Video
MAIN TEHCNICAL DATA
Length overall (incl. pulpit)
22,64 m (74′ 3»)
Hull Length (incl. platform)
22,05 m (72’ 4″)
Beam max
5,60 m (18′ 4»)
Draft (incl. props at full load)
1,82 m
Displacement (at full load)
53,3 t
PROJECT
Building material
Carbon fiber+VTR/GRP
Exterior styling & concept
Stefano Righini
Interior designer
Carlo Galeazz
KEEL
Planing with deadrise
15,6 ° aft
BUILDER
AZIMUT YACHTS
ACCOMODATION
Cabins
4 + 1 CREW
Berths
8+2 CREW
Head compartments
4 + 1 CREW
PERFORMANCE
Engines
2 x MAN CR V12 1400 mHP
Maximum speed (performance test mass)
Up to 26 kn
Cruising speed (performance test mass)
Up to 32 kn
TANK CAPACITY
Fuel capacity
5 200 L
Water capacity
1 100 L

DATA REFERS TO UNI ISO 8666 CONDITIONS




Carbon-tech generation


The use of carbon fibre is a construction choice that allows volumes and surfaces to be increased in size while keeping the same weight, therefore maintaining excellent levels of dynamic stability.
Carbon fiber lamination is applied to:

  • deck (hybrid)
  • superstructure
  • flybridge
  • radar arch
  • hard top (opt)






ACTIVE TRIM CONTROL

Automatic interceptors by Humphree gives the vessel the lift it needs to get up on plane faster or to reach that optimum running trim. In this way the resistance of the hull is automatically optimised for every speed and load condition, this resulting in increased speed and lower fuel consumption.

The Humphree system is all electric powered by 12-24 Volt DC. Thanks to the design of the Interceptor it only requires a small amount of power to move the blade up and down, even under high speed operation









INTEGRATED CONTROL PANEL

The integrated control system by Raymarine has been customised to increase control potential: from engine data and alarms, to bilge and water discharge pumps, tank levels and engine room ventilation, right through to the sound system and the air conditioning units.

The system can be accessed from both helm stations and remotely from a tablet.













Automatic Fuel transfer e-pump


The system automatically transfers the diesel fuel from tank to tank, ensuring that the heel angle is kept close to zero in the case of variable load distribution and refuelling.















HTS HIGH TECHNICAL STANDARD DECLARATION

Azimut 72 has been designed and engineered according to the highest standards applied in the recreational industry for production boats.

Thanks to CE Category A and NMMA Certification the boat is in compliance with the two major safety codes for boat below 24 meters.
